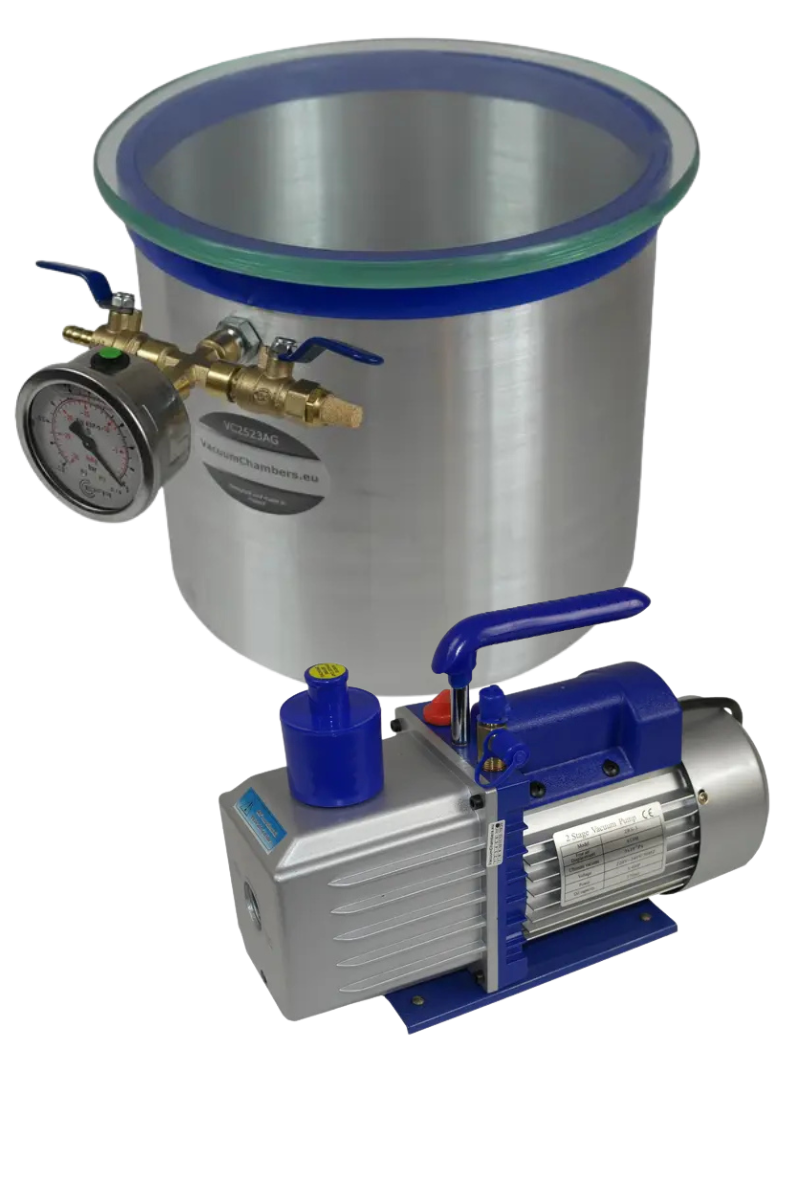

Vacuum chamber package

Everything you need to stabilize wood or degas epoxy or silicone to ensure bubble-free casting even with high viscosity silicones and epoxies.

Why vacuum chamber with pump?

• Stabilize wood with curing resin
• Remove bubbles from silicone, epoxy, resin, plaster, wax, etc. (degassing)
• Avoid trapped air in molds

Why this vacuum pump?

• Fast. A full 170L per minute air movement capacity
• High power. Vacuum level down to 0.3 Pa.
• High quality pump. Two-stage oil-filled.
• Endurance. Withstands long sessions for stabilization
• Safe and durable. Built-in oil mist filter and mechanical non-return valve.

Why this vacuum chamber?

• High-quality materials that withstand the job, both chemically and pressure-wise
• Optical glass that allows you to see the process
• Leak-proof, long-lasting and durable silicone gasket
• Two ball valves for process control
• Includes vacuum gauge that indicates vacuum level
• Includes filter inside to prevent dust and particles from entering your project

Volume is 12.5L

Material: The chamber is aluminum with high resistance to chemicals and thick tempered glass

Well suited for stabilizing wood and bone, working with ethanol, acetone and monomers or polymers.

Dimensions: 250mm diameter and 230mm height.

Connection: 1/4 inch SAE Flare

NOTE: Continuous duty cycle

30 minutes with unobstructed air access

15 minutes at full vacuum

30 min cooling between work cycles
